Question About Batteries From GFM...

hawks10 · #1 10-27-2002, 11:17 PM

If I put the NiMH 120mah cell (the ones for $3 from QFM) into my bit will it still use the stock charger on the controller? Or do I have to make or modify the charger?

Also, what are the benefits AND drawbacks of using this battery in a bit. Thanks

shred · #2 10-28-2002, 11:21 AM

the charger will still work fine because the voltage is the same. the mah differance corresponds to the amount charge the battery can hold. i believe the only differcnce youll see is a minute or so more of runtime

binaryterror · #3 10-28-2002, 12:15 PM

I always just double charge...or with the QFM battery triple charge.

QFM Racing · #4 10-29-2002, 02:53 AM

A fully charged 120mah cell will give you 20+ minutes of runtime.

TEAM_NITRO · #5 10-29-2002, 11:00 AM

I have the 150 MH what would you suggest for getting these fully charged??? Triple charge??

Thank You!!

TEAM NITRO

QFM Racing · #6 10-29-2002, 11:18 AM

Yes.

45 sec (1x charge) = 50mah (stock config)

so

135 sec (3x charge) = 150mah

FYI: Many people find that the 45sec stock charge doesnt "peak" (fully charge) the cell anyway, so they dbl. charge the stock batteries too. IF you are interested, there is a mod a QFM Racing (QuestForMadness.com) for extending your charge timer to 90 seconds.

TEAM_NITRO · #7 10-29-2002, 11:40 AM

Thank You QFM

Oh Yea your dual cell mod drawing seems to be off take a look let me know if I was right or wrong!?!?!? the + - locations

TEAM NITRO

hawks10 · #8 10-29-2002, 01:25 PM

will this battery increase the speed of the car at all?

QFM Racing · #9 10-29-2002, 02:36 PM

Team Nitro....

Hehe. Youre right! I never noticed that before. The dual cell configuration and wiring is correct, but I incorrectly labeled the chassis terminals. I guess nobody mentioned it before, because the terminal markings really dont have any bearing on the mod, and if you followed the mod, and wiring positioning in the diagram, it would still work, because you dont actually modify the terminals itself.

Thanks for the sharp eye and the heads up! Ill get it fixed.

QFM Racing

TEAM_NITRO · #10 10-29-2002, 04:17 PM

I was trying the mod and was having connection problems. So I took a good look and was I thinking the problem was terminal connection. Well needless to I say got out the soldering iron and did it again bingo!!!!!

Zip Zap with PCB mod and dual 150 mh HOLY CRAP it will cook. It will spin Bits soft slicks after rolling LOL

It is by far my favorite car for playing around and I bet it is a drag monster!!!

Oh yea the Zip Zap all terrain style treads get the best traction for me.

QFM Great site!!!!!!!!

TEAM NITRO

QFM Racing · #11 10-30-2002, 12:10 AM

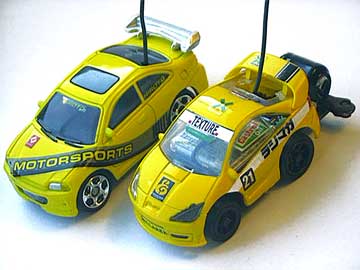

Heres my 2.4v team. Both dual cell 120mah, 3.8's, 8.25:1 gearing, spring suspension, solid copper core antennas, but stock PCB's for both. The Zip is lowered.

http://tinyrc.com/qfm/racing/img/non/2point4v.jpg

QFM Racing
